One story homes Modular Home

HOMAGIC Modern Design Prefab Modular Bolt Flat Pack Outdoor Camp Prefabricated Container Houses

HOMAGIC Prefab Modular Bolt Flat Pack Outdoor Camp With the completed roof and floor, this container house can be installed within 2 hours. The unique drainage system allows the rain to drain from the roof and enter to the pipes of the pillars, finally to the floor. HOMAGIC enures the roof of container house does not leak. For more convenience, the electrical system has been configured with the lights, socket, wire and leakage switch.

Product details

Can modular homes be personalised, or do they have to be in an standardised design?

-Yes, to both questions.

Homagic modular homes have standardised sizes and floor plans , it can mostly efficiency and reduce the costs.

Each design ensures ease of delivery and transport to site and is orientated to suit the site to get optimal energy ratings and reduce artificial heating and cooling requirements.

With these considerations, HOMAGIC green prefab modular house are still absolutely customized, and we work closely with our clients to ensure that their home is efficient but also feels homely. In addition, all modular house are built following an initial assessment of the site environment in order to customize the house to its surroundings.

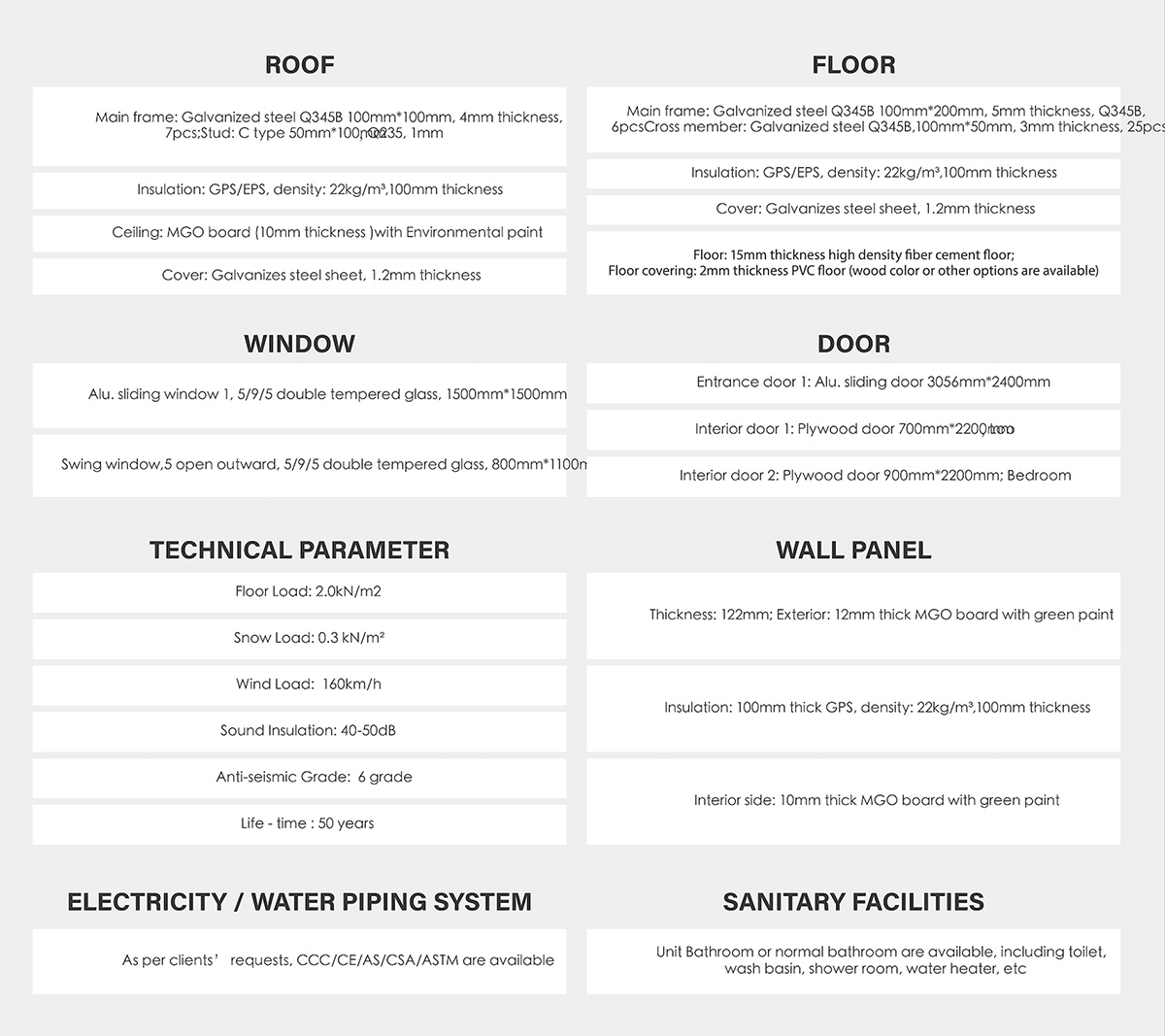

Product Structure

S.N	Component
1	Roof Corner
2	Top Beam
3	Column
4	Color Steel Roof Tile
5	Glass Fiber Insulation Cotton
6	Roof Purlin
7	Color Steel Ceiling Plate
8	Floor Purlin
9	Glass Fiber Insulation Cotton
10	Cement Plate
11	Bottom Sealing Steel Plate
12	Rubber Floor
13	Ground Corner
14	Bottom Beam
15	Wall Plate

The main structure adopts cold-formed thin-walled profiles; The integrated top frame and bottom frame are connected to the column by bolts to form a box unit; The enclosure system is a 75mm metal sandwich panel; Modular units can be shipped in packs or full cases.

Video

Customized Product Process

Professional Design Ability

Our company develops a BIM collaboration platform based on "enterprise cloud", and the design is completed on the platform with "all staff, all majors, and the whole process". The construction process is carried out on our "fabricated intelligent construction platform" with independent intellectual property rights. The platform can realize the joint participation and collaborative management of all parties involved in the construction. Fully meet the "intelligent project management platform" requirements of integrated buildings. Completed the development of "Box House Design Generation Toolset Software" and obtained three software copyrights. The software functions are comprehensive and have high operating efficiency, including "4+1" main functions and 15 special functions. Through the software application, the difficulties of collaborative work in the links of design, production, order dismantling, and logistics have been solved, and the overall implementation efficiency and cross-departmental collaboration efficiency of the box-type housing project have been effectively improved.

The material database is established through the BIM model, combined with the comprehensive management platform, the material procurement plan is formulated according to the construction process and the progress of the project plan, and the material consumption types at each stage of the construction are quickly and accurately extracted, and the basic data support of the BIM model is used as the material procurement and management. Control basis. Material procurement, management and real-name management of workers are realized through the China Construction Cloud Construction online shopping and centralized procurement platform.

Manufacturing Capacity

Light steel structure products are prefabricated in advance, speeding up the production cycle, helping you to undertake projects faster and complete house construction.

It is a form of using advanced and applicable technology, craftsmanship and equipment to pre-manufacture various components of the building by professional factories before construction, and then transport them to the construction site for assembly. Repeated mass production in the factory is conducive to speeding up the construction progress, shortening the construction period, improving the efficiency and quality of the production of components, simplifying the construction site, and achieving civilized construction.

Packaging and Shipping

All accessories will be shipped in containers and the main frame will be shipped by sea. Shipping information includes regular product information, testing information required by customer orders, etc. Please consult customer service staff for details.
